The technological features of the 28XR-HR regulator place it in the top of the range of technical diving in the underwater world. The 28XR underwater regulator has exclusive features in both first and second stages. A vertical outlet on the turret and the 4 lateral ones allow it to be configured in a perfect way on the twin tanks and in the sidemount configuration.

Mares has incorporated the top of modern regulator technology into the 28XR-HR underwater regulator. The first stage uses the innovative concept of the balanced diaphragm, which is operated by a double piston. All ecologically sealed using AST - Auto Sealing Technology. This also guarantees perfect sealing against the possible entry of sand or particles, especially in cave diving or in polluted waters. This proves further true in technical diving, for the possibility of removing it in the water without flooding it. The rotating turret with vertical low pressure outlet and 4 more low pressure outlets make it usable in all configurations. Its flexibility allows it to be used: on the double tank, in stages and in sidemount configuration.
The second stage with technopolymer body, simple and ultralight, provides excellent performance. A large side knob allows you to adjust the breathing force even when wearing thick neoprene gloves. You can adjust the "hard" second stage when not in use, and make it "softer" when in use.

The key features of the 28XR-HR Technical Diving Regulator are:

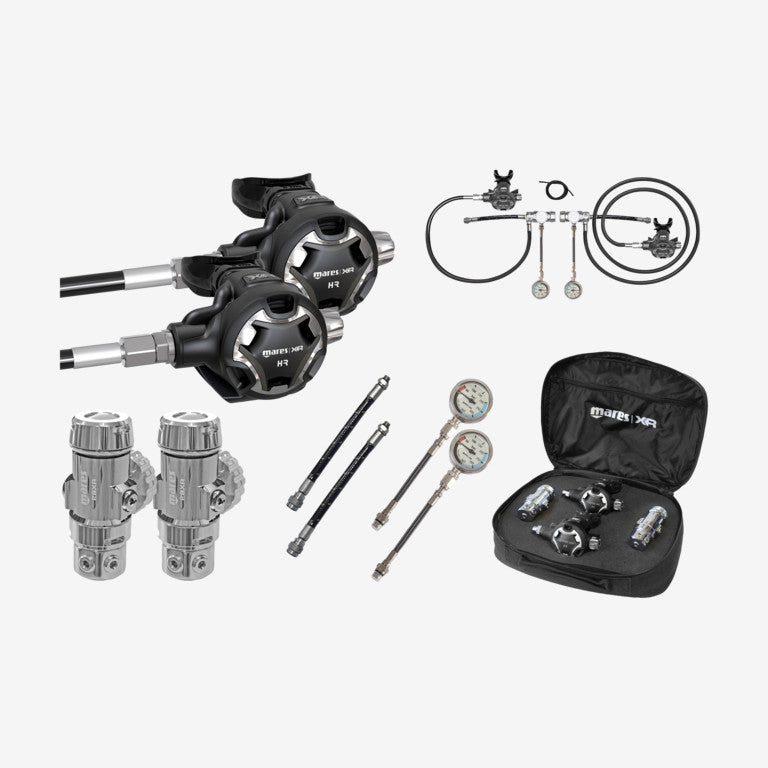

Set consisting of:
• 2 HR second stages
• 2 28XR first stages
• 2 Miflex XT-Tech hoses (60 cm - 210 cm)
• 2 Miflex XT-Tech hoses for sidemount control unit (20cm)
• 1 m of 4 mm elastic
• 2 pressure gauges - metric only

FIRST STAGE
• Polished chromed metal body
• Natural DFC on all LP outlets
• Watertight "TBP" (Twin Balanced Piston) system
• Watertight anti-infiltration technology (Auto Sealing Technology, AST)
• 4 LP outlets on turret swivel
• 1 vertical LP outlet
• 2 symmetrical HP outlets at an angle of 10° for perfect positioning of the hose
• DIN only - 300 bar
• Weight: 790 g

SECOND STAGE
• Suitable for stage, sidemount, rear main, reserve or "hard breathing" configuration
• Breathing effort adjustment
• Simple, ultralight and excellent performance technopolymer body
• PAD - Pneumatically Assisted Design
• Flush button oversized
• Miflex XT-Tech hose
• Can be opened and cleaned or adjusted underwater

FACTS
  • MATERIAL: Ultralight Technopolymer
  • FIRST STAGE WEIGHT DIN:827g / 29.2oz
  • SECOND STAGE WEIGHT:232g / 8.2oz
  • HIGH PRESSURE PORTS:2 [7/16" UNF]
  • LOW PRESSURE PORTS:5 [3/8" UNF]
  • HOSE TYPE:Miflex XT-Tech Hose
  • SECOND STAGE 1:Technopolymer second stage
  • SECOND STAGE 2:Pneumatically assisted valve
  • FLOW RATE (STP):560l/min - 20ft³/min
  • WEIGHT (WITHOUT HOSE):225g - 8oz
  • HOSE LENGTH:60cm / 24in - 210cm / 7ft
