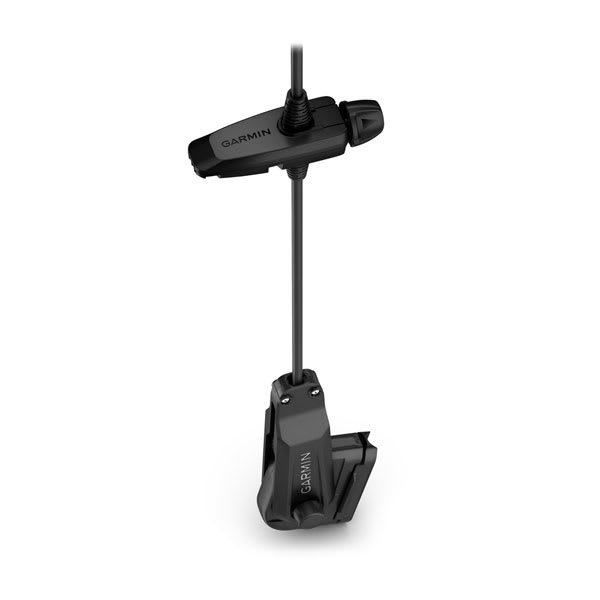

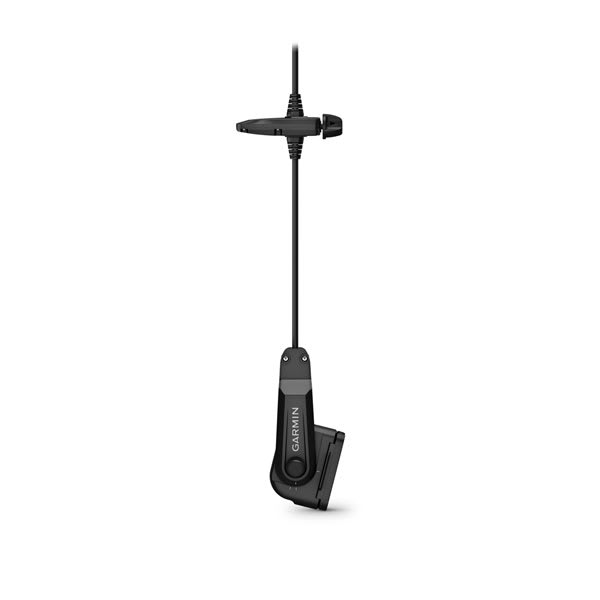

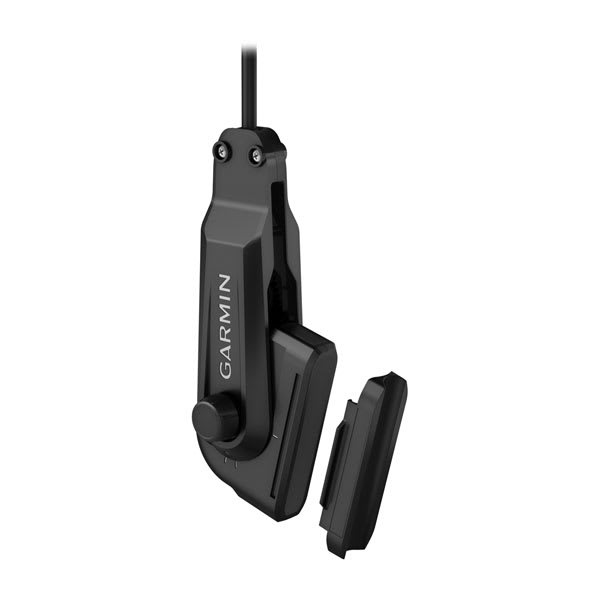

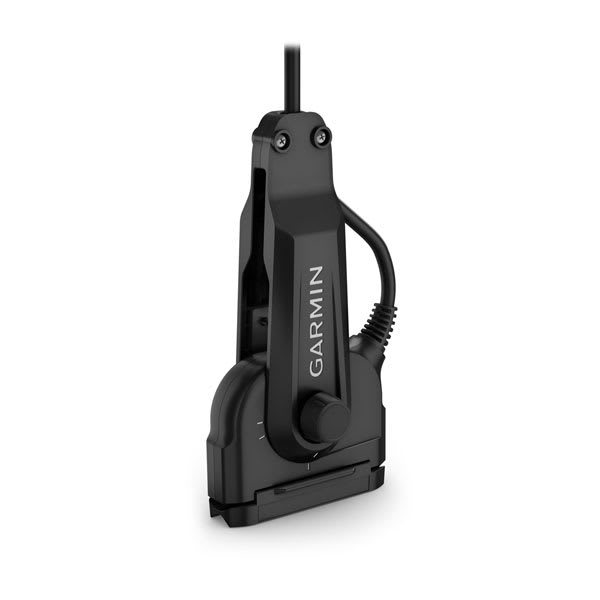

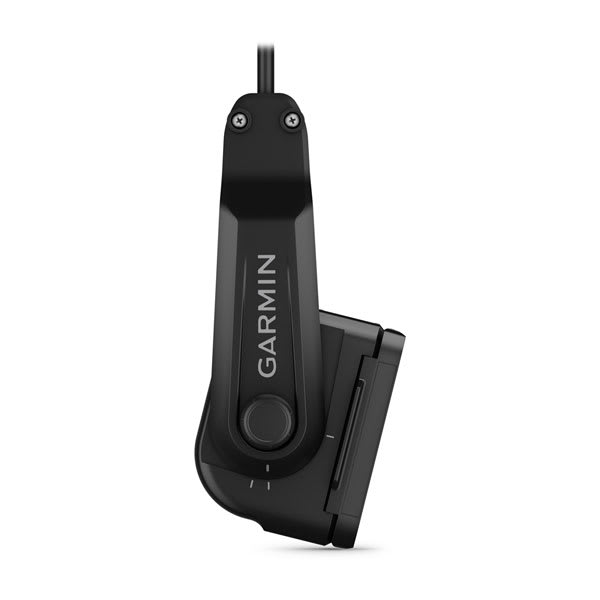

Garmin Panoptix™ PS22-IF Ice Fishing Live Sonar Transducer

Garmin Panoptix™ PS22-IF Ice Fishing Live Sonar Transducer

010-01945-10

$1,099.99 USD
$1,099.99 USD
Sale Sold out
✔ Free insured U.S. shipping on orders $50+
  • ✓ Authorized Dealer
  • ✓ Full Manufacturer Warranty
  • ✓ Ships from Nevada – Fast Processing
  • ✓ Real Divers. Real Support.

In Stock – Ready To Ship

Estimated Delivery: Ships within 3-5 business days.

The Garmin Panoptix™ PS22-IF Ice Fishing Live Sonar Transducer shows what is happening under the water in real time, so you can watch fish, bait and your lure as they move. It connects to a compatible Garmin chartplotter.

Specifications

  • Transducer beamwidth: With lens: 12° x 120° Without lens: 57° x 120°
  • Transducer cable length: 9.8' (3 m)
  • Dimension: 9.1” x 4.1” x 2.5” (23.1 x 10.4 x 6.4 cm)
  • Weight: 2.60 lbs (1.18 kg)
  • Temperature range: Operating: 0° C to 40° C
  • Power input: 10-32 V
  • Fuse: 4A
  • Frequency: 417 kHz
  • Transmit power: 48 W
  • Maximum depth: 300'
  • Garmin Marine Network Ports: 1 (standard connector)

Works with

  • ECHOMAP™ Plus 72cv
  • ECHOMAP™ Plus 72sv
  • ECHOMAP™ Plus 73cv
  • ECHOMAP™ Plus 73sv
  • ECHOMAP™ Plus 74cv
  • ECHOMAP™ Plus 74sv
  • ECHOMAP™ Plus 75cv
  • ECHOMAP™ Plus 75sv
  • ECHOMAP™ Plus 77cv
  • ECHOMAP™ Plus 77sv
  • ECHOMAP™ Plus 92sv
  • ECHOMAP™ Plus 93sv

Plus additional compatible Garmin devices.
