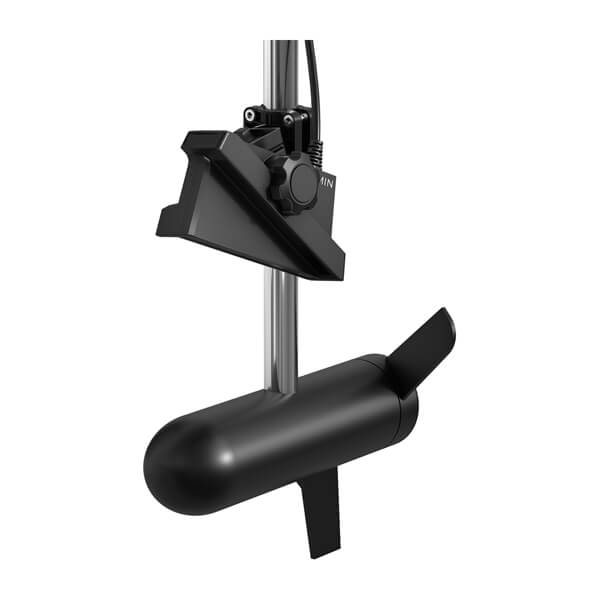

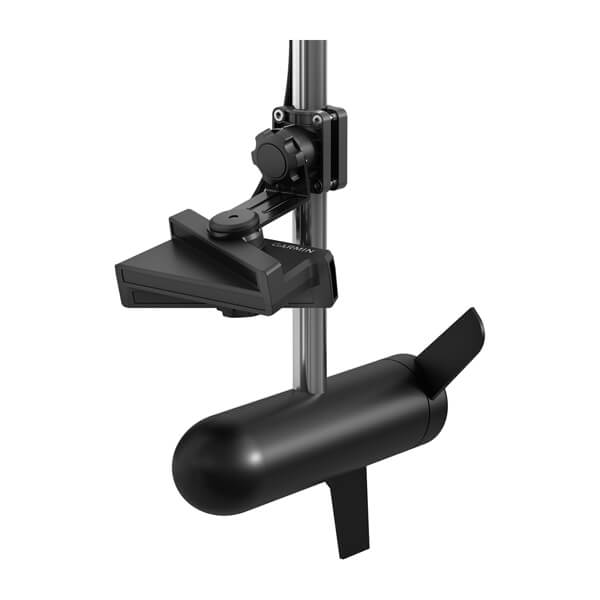

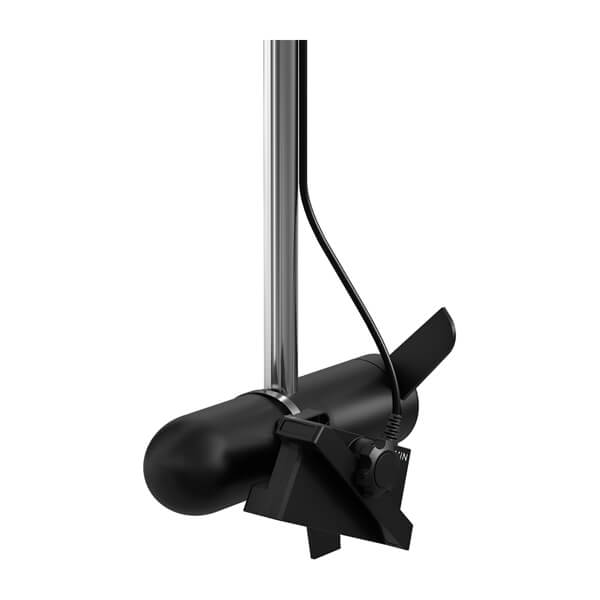

Garmin LiveScope™ XR System

Garmin LiveScope™ XR System

010-02719-00

$2,999.99 USD
$2,999.99 USD
Sale Sold out
✔ Free insured U.S. shipping on orders $50+
  • ✓ Authorized Dealer
  • ✓ Full Manufacturer Warranty
  • ✓ Ships from Nevada – Fast Processing
  • ✓ Real Divers. Real Support.

In Stock – Ready To Ship

Estimated Delivery: Ships within 3-5 business days.

The Garmin LiveScope™ XR System shows what is happening under the water in real time, so you can watch fish, bait and your lure as they move. It connects to a compatible Garmin chartplotter.

Specifications

  • Transducer beamwidth: 20° x 135°
  • Transducer cable length: 20 ft
  • Transducer number of pins: 21

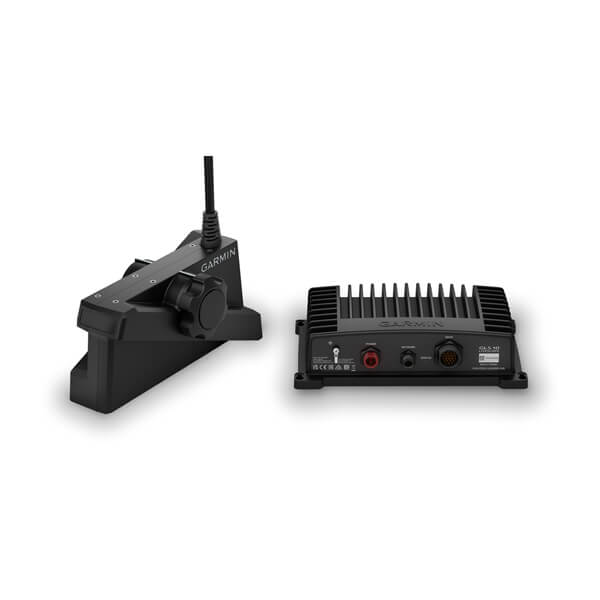

  • Dimension: GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
  • Weight: GLS 10 sonar black box: 4.3 lbs (2.0 kg) LVS62 transducer with cable: 3.92 lbs (1.78 kg) LVS62 transducer without cable: 2.66 lbs (1.21 kg)
  • Water rating: IPX7
  • Temperature range: GLS 10 Black Box: Operating: -15 C to 70 C LVS62 Transducer: Operating: 0 C to 40 C
  • Power input: 10-32 V
  • Power usage: 21 W typical, 58 W max
  • Fuse: 7.5 A
  • Compass-safe distance: 7" (0.18 m)
  • Frequency: 265 - 550 kHz

Works with

  • ECHOMAP™ UHD 72cv
  • ECHOMAP™ UHD 72sv
  • ECHOMAP™ UHD 73cv
  • ECHOMAP™ UHD 73sv
  • ECHOMAP™ UHD 74cv
  • ECHOMAP™ UHD 74sv
  • ECHOMAP™ UHD 75cv
  • ECHOMAP™ UHD 75sv
  • ECHOMAP™ UHD 92sv
  • ECHOMAP™ UHD 93sv
  • ECHOMAP™ UHD 94sv
  • ECHOMAP™ UHD 95sv

Plus additional compatible Garmin devices.
